General Information

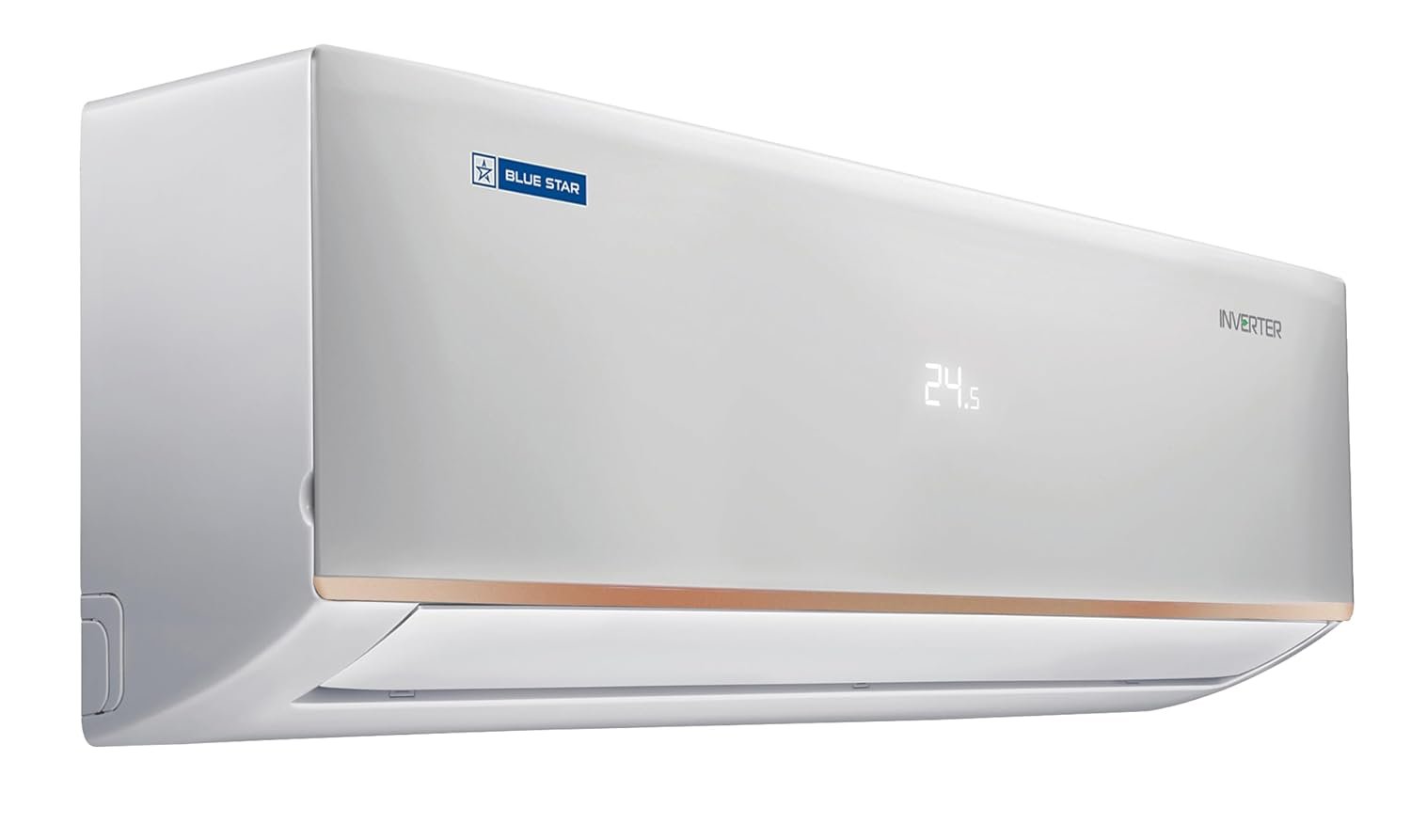

Product Title: IC324DCUHD – Inverter Split AC 2.0 Tr 3 Star D Series
Brand: Blue Star
Type: Split AC
Technology: Inverter
Nominal Cooling Capacity (Tonnage): 2.0 Ton
Star Rating: 3 Star
Country of Origin: India
Manufacturer Address: Blue Star Limited, Kasturi Buildings, Mohan T Advani Chowk, Jamshedji Tata Road, Churchgate, Mumbai – 400020
Performance
Cooling Capacity (Min~Max): 6860 W (2440 ~ 7027 W)
Cooling Capacity (BTU/hr): 23,406
Rated Cooling Capacity (50% Load): 3430 W
Cooling Power Input (Rated): 2175 W
Cooling Power Input (50% Load): 780 W
ISEER: 4.05
Electricity Consumption (1600 hrs/year): 1312.41 Units
Nominal Current (Cooling): 9.48 A
Ambient Temperature (Cooling): Up to 56°C
Moisture Removal: 2.2 L/hr
Air Flow & Noise Levels
Air Flow Volume (Wet CFM): High – 699 / Medium – 653 / Low – 456 / Silent – 392
Indoor Unit Noise Level: 52 / 48 / 39 / 37 dB
Outdoor Unit Noise Level: 60 dB
Compressor & Refrigerant
Compressor Type: Inverter Rotary
Acoustic Jacket on Compressor: Yes
Refrigerant Type: R32
Refrigerant Quantity: 1.02 kg
Condenser Type: 100% Copper
Refrigerant Additional Charge (Beyond 4M): 15 g/m
Design & Dimensions
Indoor Unit Dimensions (W x D x H): 1110 x 215 x 335 mm
Indoor Unit Net Weight: 13.5 kg
Indoor Unit Gross Weight: 16.8 kg
Outdoor Unit Dimensions (W x D x H): 968 x 367 x 689 mm
Outdoor Unit Net Weight: 30.5 kg
Outdoor Unit Gross Weight: 35.5 kg
Piping & Connections
Suction Tube Size: 5/8" (15.88 mm)
Liquid Tube Size: 1/4" (6.35 mm)
Power Supply to ODU Source: 4C × 2.5 sqmm
Power Supply to IDU Source: 3C × 2.5 sqmm
Convenience & Remote Control

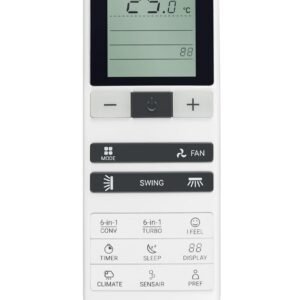

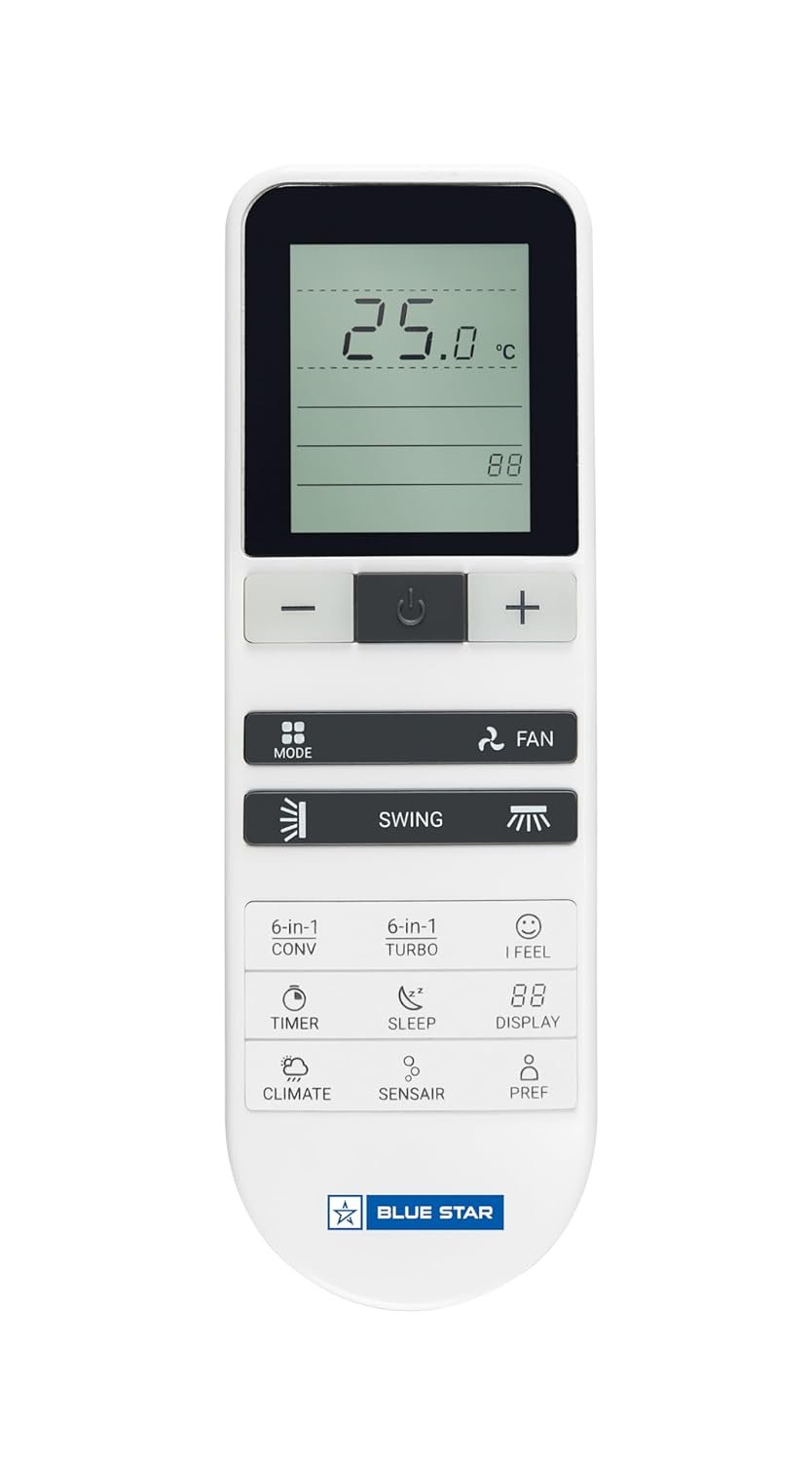

Remote Type: LCD Remote with Display
Night Glow Buttons on Remote: Yes
Remote Battery Type: AAA
Power & Supply
Rated Voltage / Frequency / Phase: 230V / 50Hz / 1Ph
Power Supply Input: Indoor Unit
Included Components

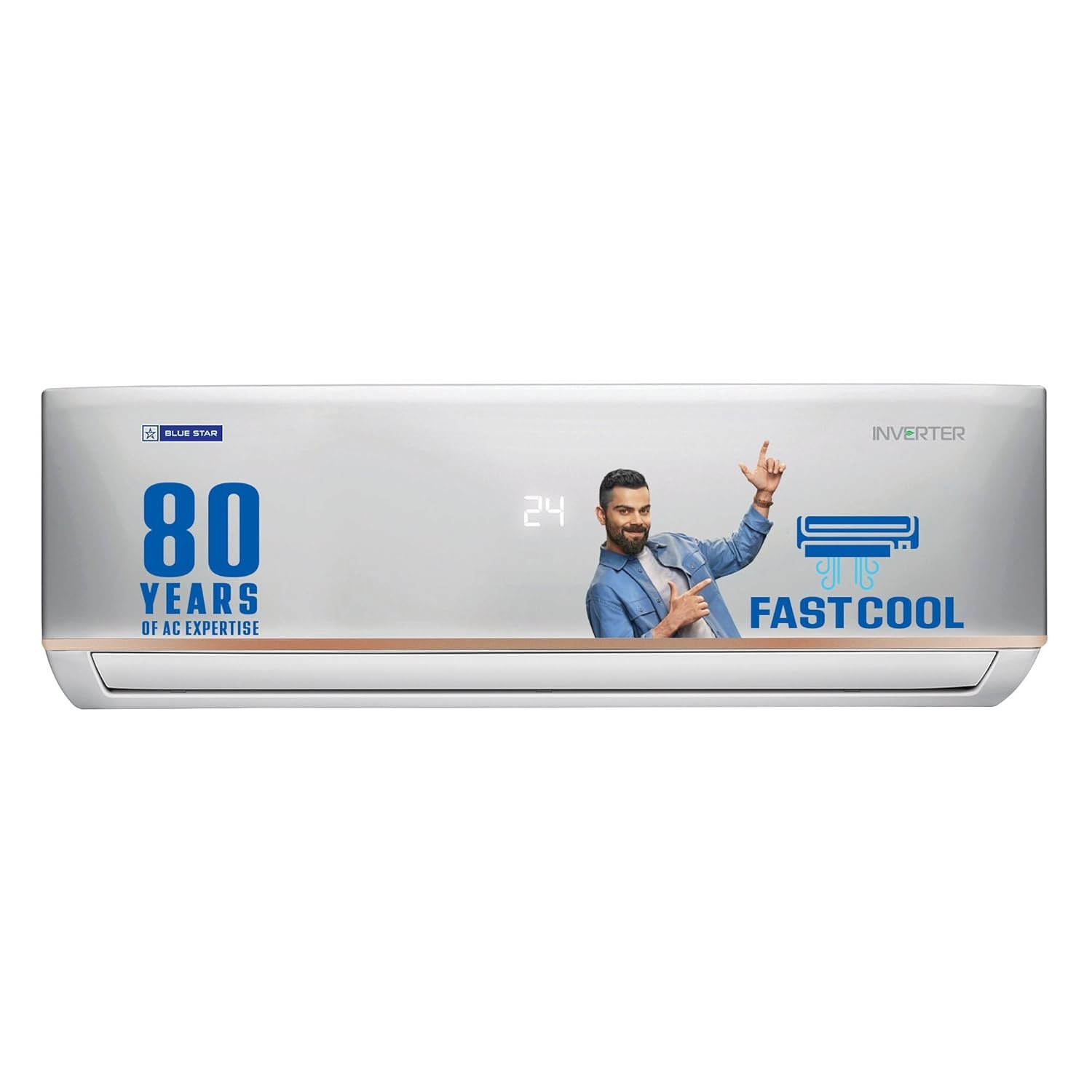

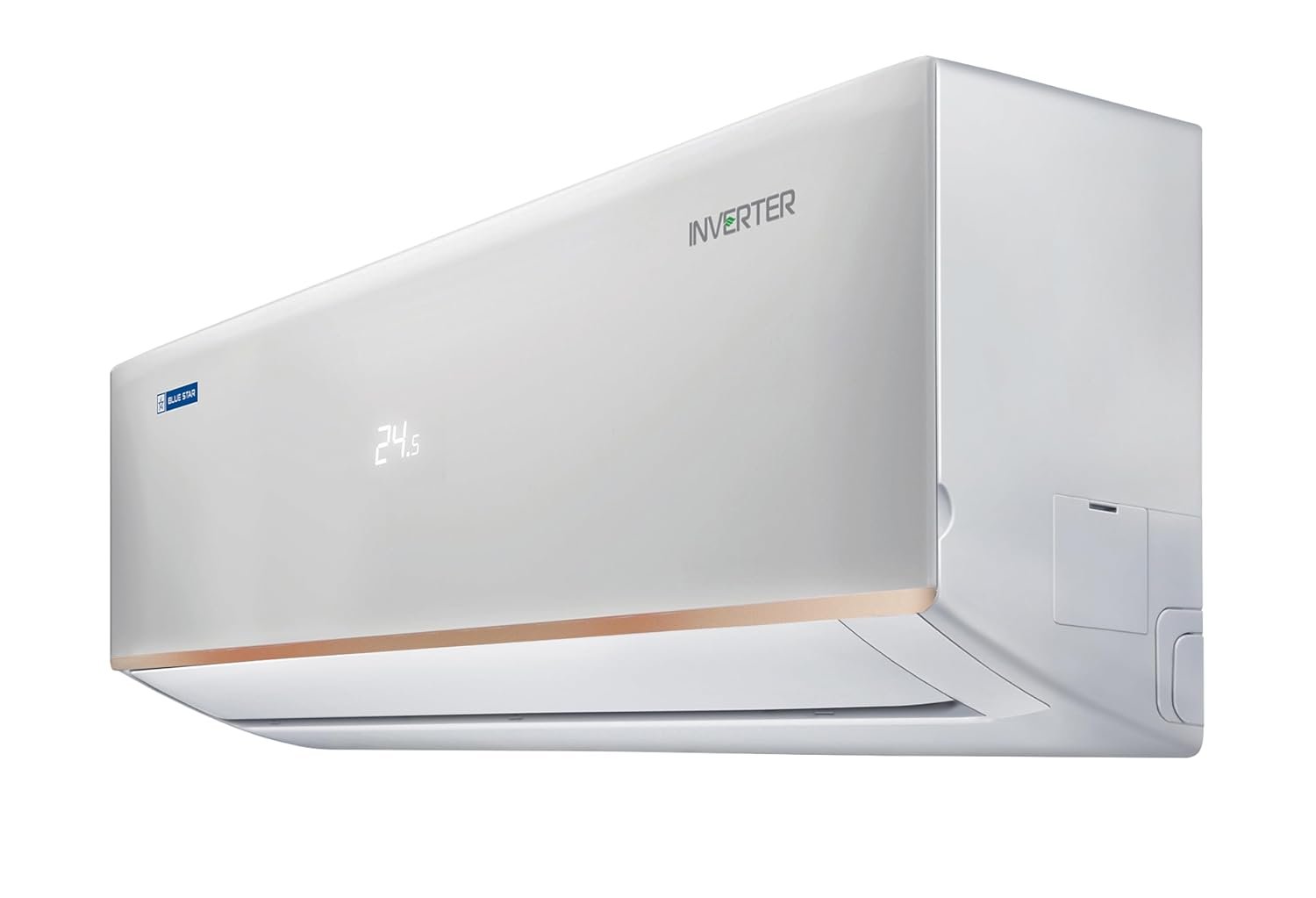

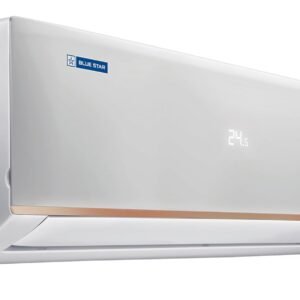

1 Indoor Unit

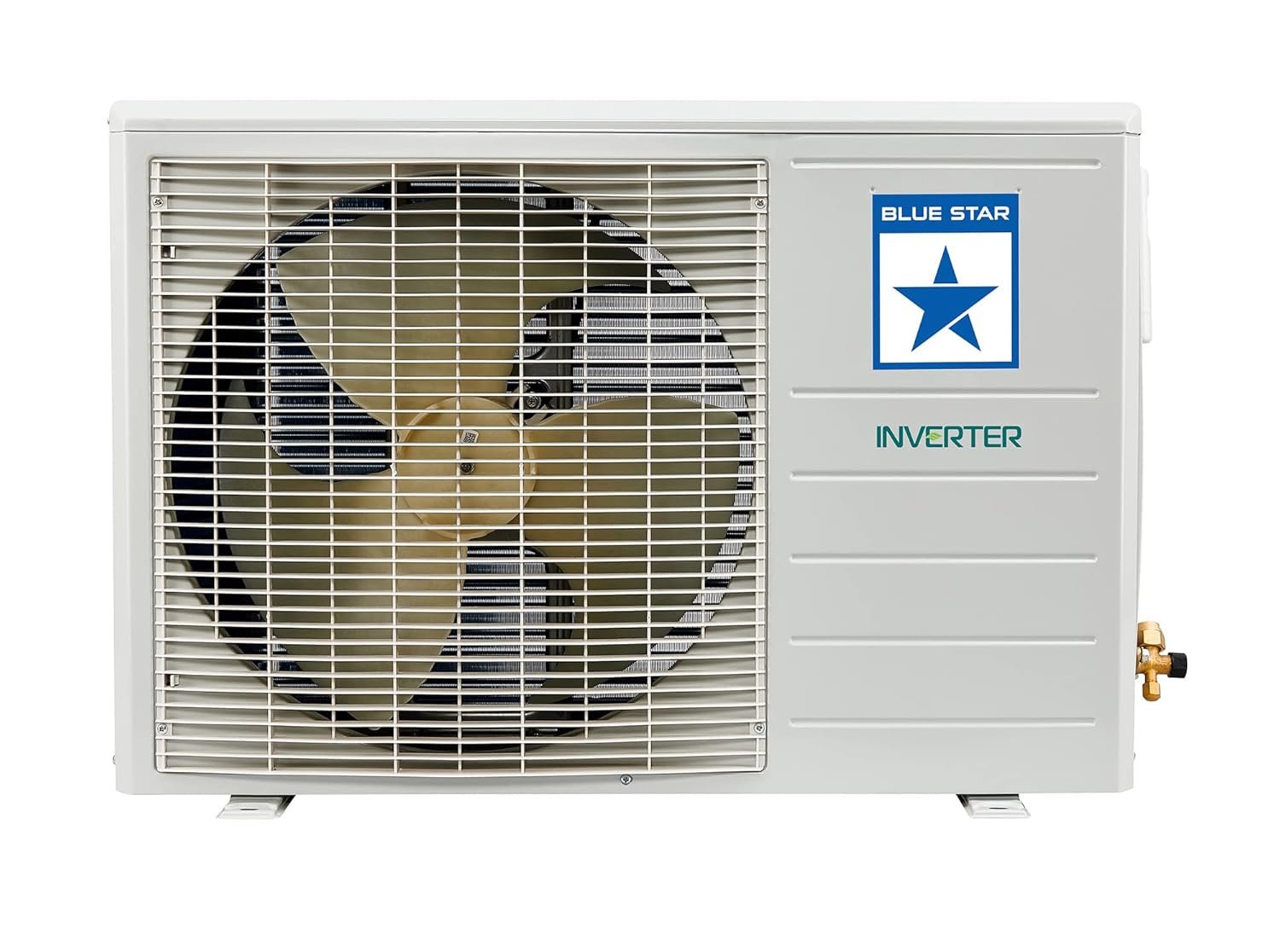

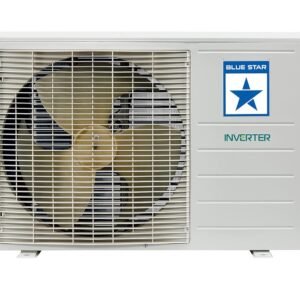

1 Outdoor Unit
1 Copper Tube (3 m)
1 Interconnecting Wire (3.5 m)
1 Remote Control
User Manual
|
